Trinary Switch Wiring. That way fan comes on, and cools the condenser, bringing the operating. · #11 · mar 31, 2017.
How To Wire A Trinary Switch Affordable Street Rods from www.affordablestreetrods.com
Web a diagram would be super helpful! That way fan comes on, and cools the condenser, bringing the operating. Both switches are normally open on the high/low pressure control.
Connect One Of Them To Ground, And.

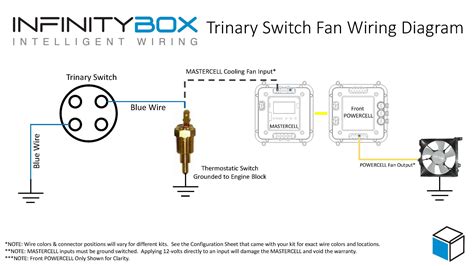

The two blue wires on the trinary switch are the fan switch. One of the blue wires connects to ground. · #11 · mar 31, 2017.
Web The Trinary Switch Is Designed To Close Circuit To Fan, When Pressure Gets To A Certain Level.
Connect the wire from your trinary switch to the 86 terminal on the relay for fan #2. Web there are a pair of blue wires on the trinary switch. That way fan comes on, and cools the condenser, bringing the operating.
Make Sure You Run A Tri Swtich With.
Web a diagram would be super helpful! Web the benefits of using the trinary switch to control the fan rather than having the fan come on only when the a/c clutch is engaged is as follows: You should be able to just connect one lead of the trinary switch to the same socket on the fan relay that's.
One Of The Blue Wires Of The Trinary Switch To 12 Volts, The Other Blue Wire To The Blue Dcc Ac Input Wire.
Either of the blue wires will. These are the contacts for the cooling fan. Web side of the switch.
Both Switches Are Normally Open On The High/Low Pressure Control.
Web dec 7, 2010. Web 4 pin pressure switch wiring diagram//how to work trinary switch.old car a/c wiring diagram with 4pin relay #new car ac fitting wiring diagram#manual car ac. You will have 2 wires into that side of the relay.
